Remote Differential Pressure Transmitter 30VDC With Lcd Display

Name: Remote Differential Pressure Transmitter 30VDC With Lcd Display
Brand: YUNYI
Price: 75 USD

Remote Differential Pressure Transmitter 30VDC With Lcd Display Manufactures

Brand Name : YUNYI

Model Number : 2088

Certification : ce

Place of Origin : china

MOQ : 1

Price : $75/pcs

Payment Terms : L/C, D/P, T/T, Western Union

Supply Ability : 1000pcs/month

Delivery Time : 7days

Stability : ± 0.10% of URL for 12 months

Output : RS485/RS232

Measurement Range : -0.1....0~0.01... ~100MPa

Electrical Interface : M20*1.5(Internal thread)

Explosion-proof Level : ExiaIIBT4, ExdIIBT4

Communication Power Supply : 7~30VDC external power supply

Contact Now

Description:

Explosion Proof 4 20ma digital pressure gauge Transmitter can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 4000 psi (275.8 bar). 2088 can also be used to measure negative pressure ranges. The 2088 pressure transmitter measurement capabilities enable reliable use in almost any application.

Specification:

Measurement Range	-0.1….0~0.01... ~100MPa
Proof pressure	≤1.5X rated pressure or 110MPa which ever is less
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%( Typical) ±0.5%( Max.)
Long term stability	±0.2%F.S/year
OperatingTemperatureRange	-20℃~80℃
Storage TemperatureRange	-40℃~120℃
Power supply	15~30VDC
Output signal	4~20mA 0~10/20mA 0/1~5VDC
Pressure port	M20×1.5 or customize
material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O-ring	Fluororubber
Electrical housing	Cast aluminium alloy(2088housing)
Insulation resistance	100MΩ,100VDC
Protection	IP65

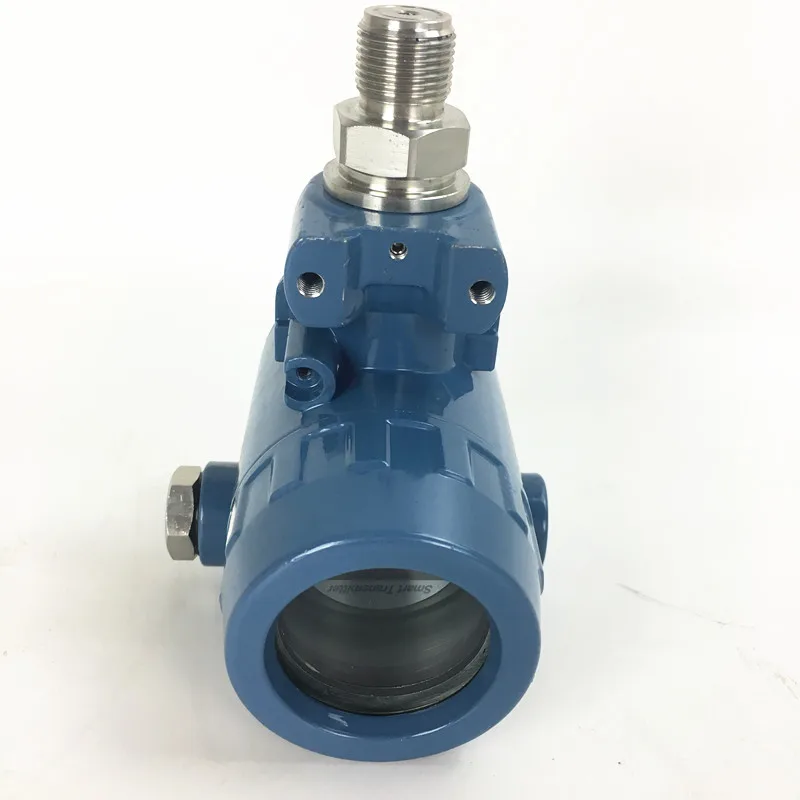

Detailed Images Economical Digital remote differential pressure transmitter sensor with lcd

Remote Differential Pressure Transmitter 30VDC With Lcd Display

Applications:

Compatible with 316LSS, noncorrosive gases & liquids.
Special use in harsh environmental conditions.
