Description of ammonia fuel steam digital pressure gauge manometer
SLK-100 Series Intelligent Pressure Gauges have full electronic structure and use battery-powered, so they are very easy for on-site installation. Specifically, front-end high-precision piezoresistive pressure sensor is used and the output signal is processed by the high-precision, low temperature drift amplifier, then sent into the high-precision A/D converter to be converted into digital signal, after computing and processing the actual pressure value is showed on the LCD display.
Features of ammonia fuel steam digital pressure gauge manometer
Large-screen LCD display, high resolution, ignoring the error.
Peak Hold function, record the maximum pressure values during the measurement
Pressure on the percentage of dynamic display, (the progress bar display)
Choice of five engineering units: psi, bar, kpa, kg / cM2 Mpa
Choose 0 ~ 15min auto-off feature.
Micro-power consumption, work more than 2 years in power-saving mode, 2,000 hours continuous work.
Parameter correction, correct zero and error in field application.
Limit the upper and lower range
Sampling rate: 4 times / sec
Specification of ammonia fuel steam digital pressure gauge manometer
| Scale Range | -0.1~0~250MPa | Accuracy | 0.4%, 0.2%,0.5%,0.25% |
| Overload capacity | 200% | Pressure Type | Gauge,Absolute Pressure |
| Stability | ≤0.1%/year | Battery voltage | High energy lithium battery or rechargeable battery |
| Display | LCD,5characters | Display range | -19999~99999 |
| Ambient temperature | -20°C~70°C | Relative humidity | ≤80% |
| Connection size | M20x1.5 Male | Pressure unit | MPa/KPa/Bar/Psi/mBar |
| Case material | SS | Medium temp | -10~80°C |

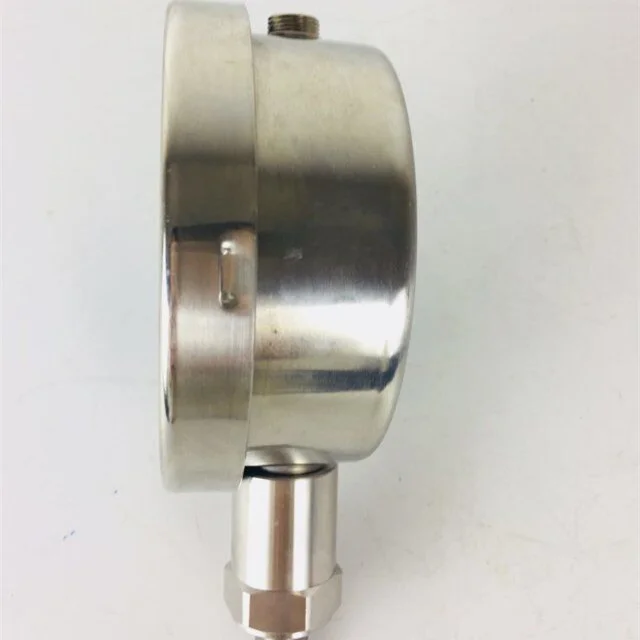

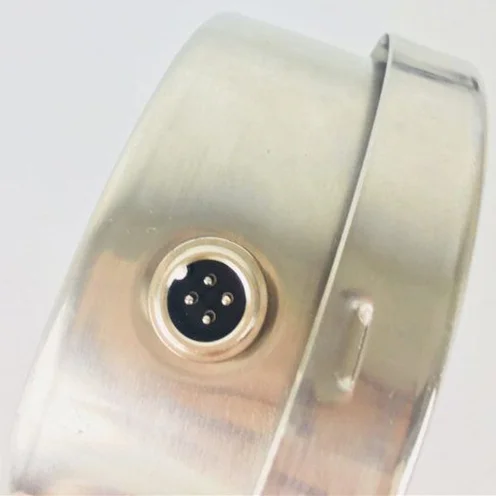

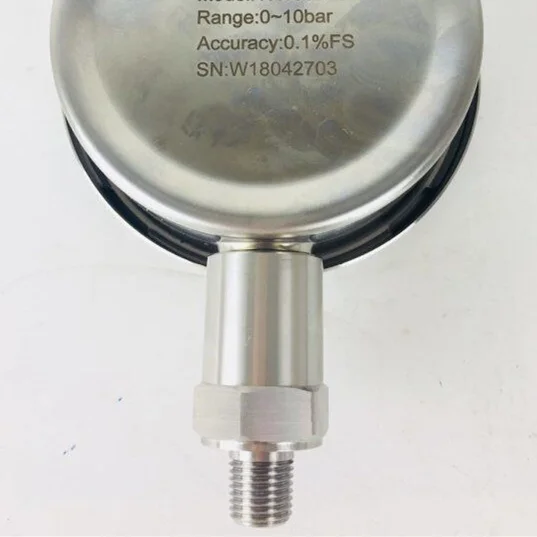

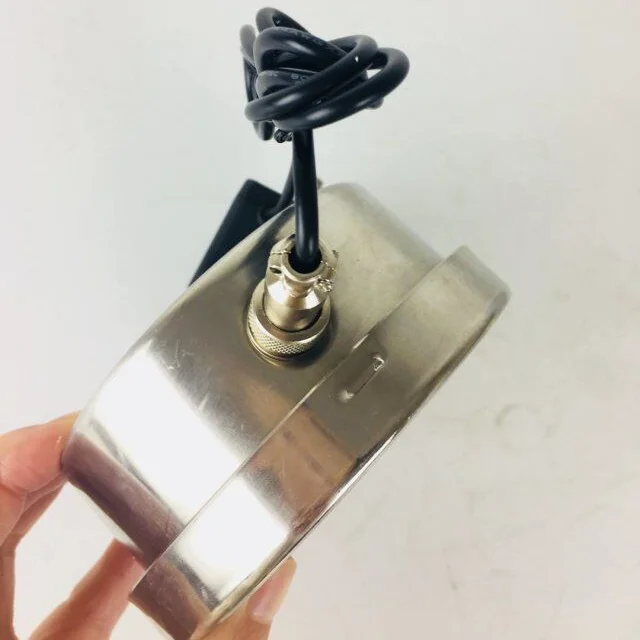

Detailed Images of ammonia fuel steam digital pressure gauge manometer
Applications of ammonia fuel steam digital pressure gauge manometer
Used to petroleum, chemical industry, power plant, water supply of town, Horologic exploration fields.
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
